Pad Coordinate File

Functional entrance

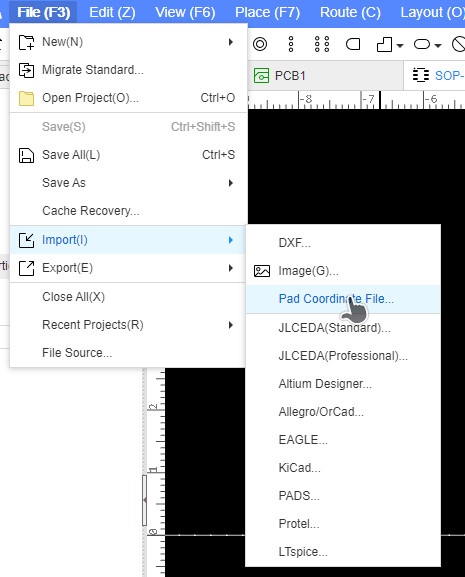

• Top Menu -File -Import -Packing Coordinate File

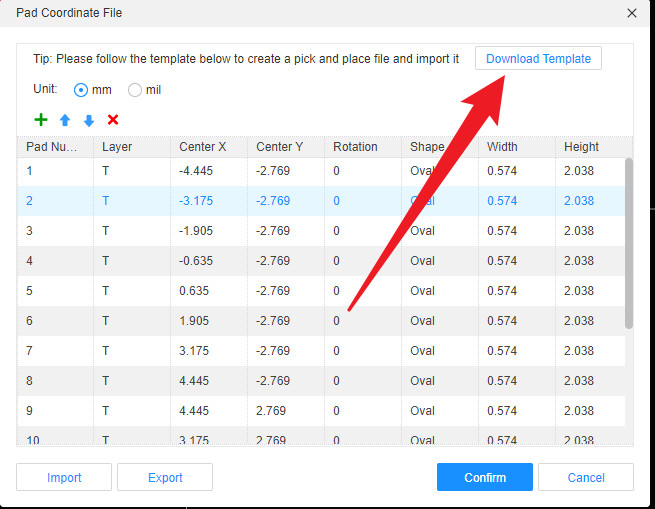

We can click here to download the template and fill in the relevant data of the pad

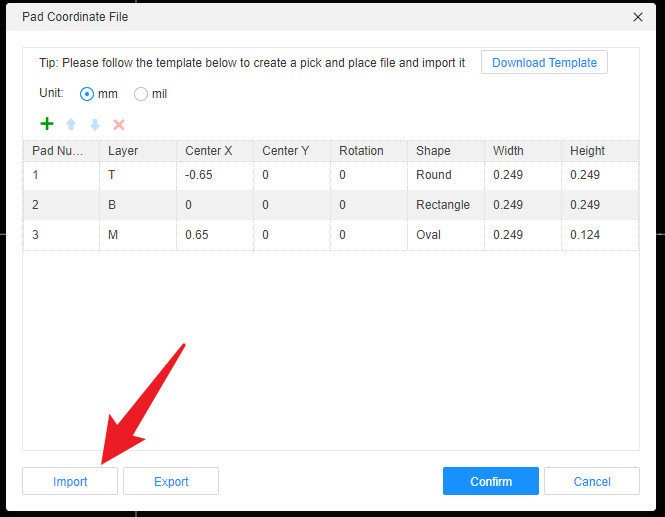

Then import the form file

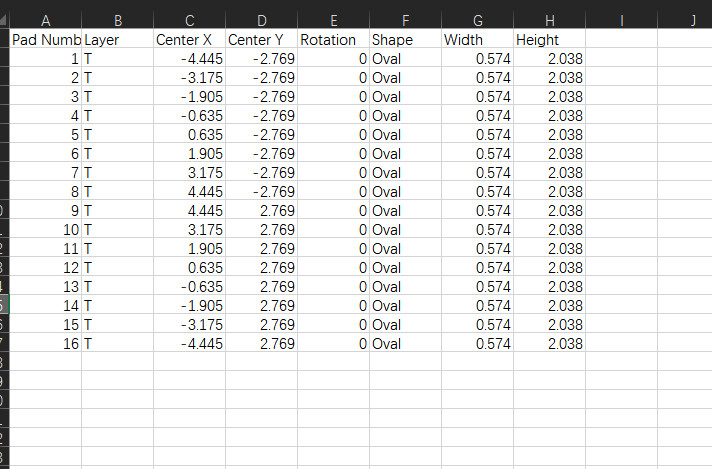

sample data：

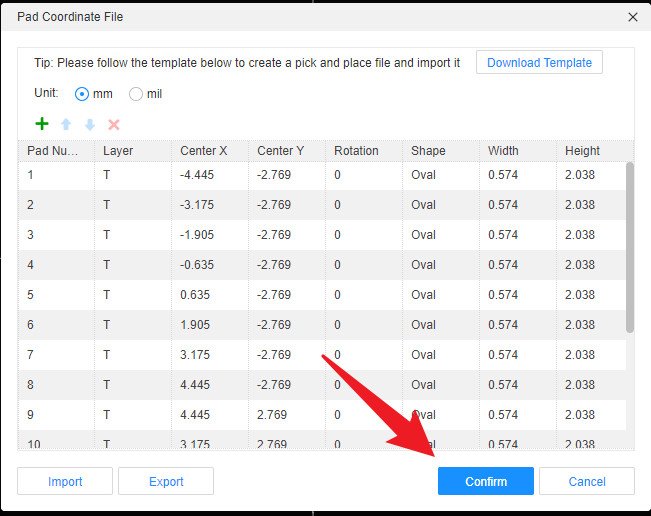

Then click OK and the corresponding pad will be generated on the canvas

Then manually add silk screen printing and other content to complete the drawing of the package
